无风扇工控机
←
→

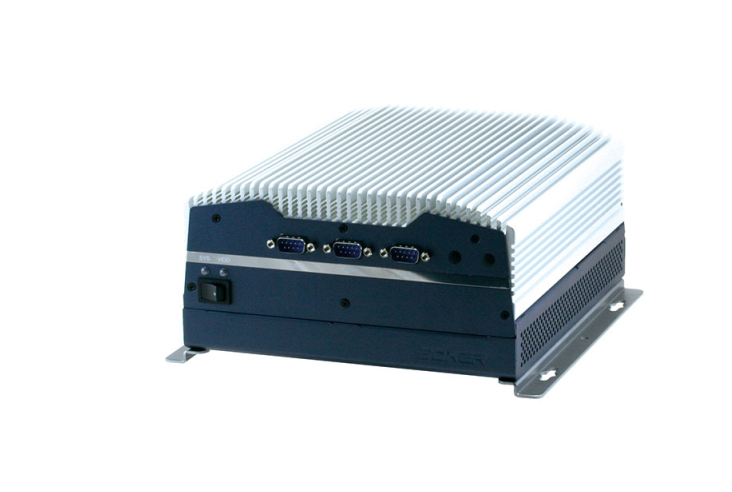

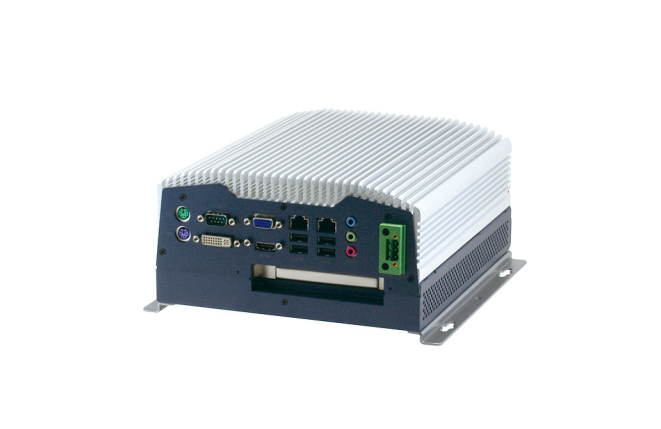

AEC-6876

  • 英特尔?酷睿? i7-2710QE/ i5-2510E/ i3-2330E/ Celeron? B810处理器
  • DDR3 SODIMM x 2、DDR3 1066/1333内存，最大支持16GB
  • 英特尔?QM67芯片组
  • 千兆以太网 x 2
  • 英特尔?集成图形引擎，支持VGA，DVI，HDMI，LVDS接口双显
  • COM x 4
  • PCI x 2、PCI-Express[x4]x1
  • 支持研扬的Hi-Safe与Hi-Manager软件(仅i5/i7 CPU系列版本支持)

    • 产品详情

    STEM
    CPU Intel? Core? i7-2710QE, 2.1 GHz
    Intel? Core? i5-2510E, 2.5 GHz
    Intel? Core? i3-2330E, 2.2 GHz
    Intel? Celeron? B810 1.6 GHz
    CHIPSET Intel? QM67
    SYSTEM MEMORY DDR3 1066/1333 SODIMM slot x 1, up to 16 GB
    DISPLAY INTERFACE VGA, DVI-D, HDMI
    STORAGE DEVICE CFast?, HDD/SSD
    ETHERNET Intel? WG82579LM, 10/100/1000Base-TX x 1
    Realtek RTL-8111E, 10/100/1000Base-TX x 1
    I/O RS-232/422/485 x 1
    RS-232 x 3
    USB 2.0 x 4
    VGA x 1
    DVI x 1
    HDMI x 1
    Line-in x 1
    Line-out x 1
    Mic-in x 1
    LAN x 2
    PS/2 KB x 1
    PS/2 Mouse x 1
    PCIe slot x 1 (A Sku)
    PCI slot x 2 (B Sku)
    Antenna holes x 2
    Power switch
    Power input
    EXPANSION Full-size Mini-Card x 1
    PCIe x 1 (A Sku)
    PCI x 2 (B Sku)
    INDICATOR Power LED
    HDD active LED
    OS SUPPORT Windows? 7, Windows? XP Embedded, WES2009,WES 7, Linux Fedora 13 / Kernel 2.6.33.3
    POWER SUPPLY
    POWER REQUIREMENT 9 - 30V with 3-pin terminal block
    12V with DC Jack
    MECHANICAL
    MOUNTING Wallmount
    DIMENSIONS (W X H X D) 9.37" x 4.03" x 7.62" (223 mm x 107mm x 238mm)
    GROSS WEIGHT 13.2 lb (6 kg)
    NET WEIGHT —
    ENVIRONMENTAL
    OPERATING TEMPERATURE -15°C ~ 55°C with wide temperature HDD
    (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
    STORAGE TEMPERATURE -20°C ~ 70°C
    STORAGE HUMIDITY 95% @ 40°C, non-condensing
    ANTI-VIBRATION 5 Grms/ 5 ~ 500Hz/ operation –mSATA / SSD
    1 Grms/ 5~ 500Hz/ operation – HDD
    CERTIFICATION CE/FCC class A
