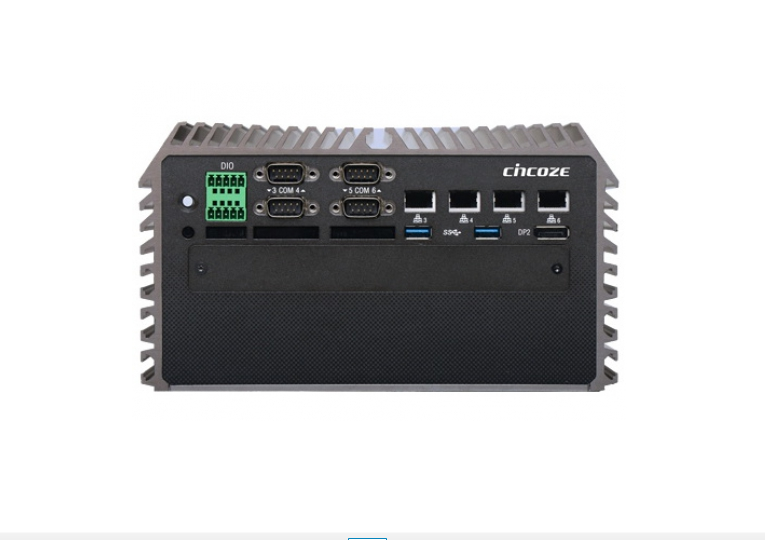

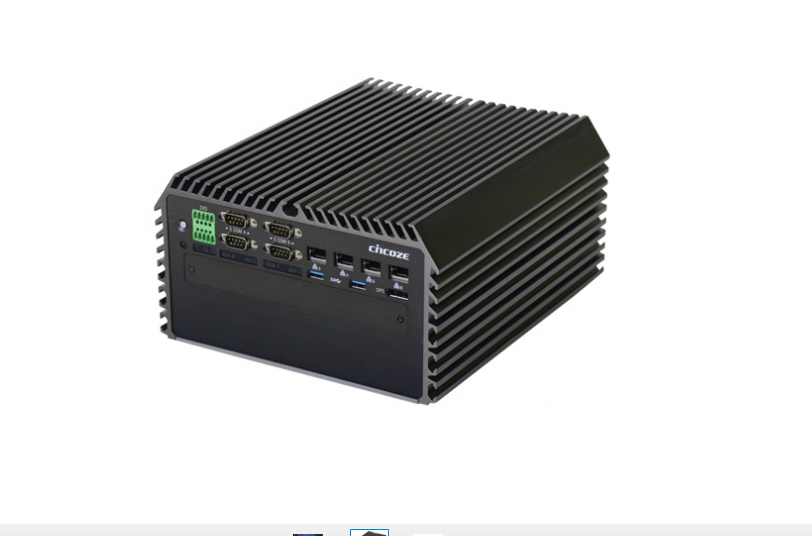

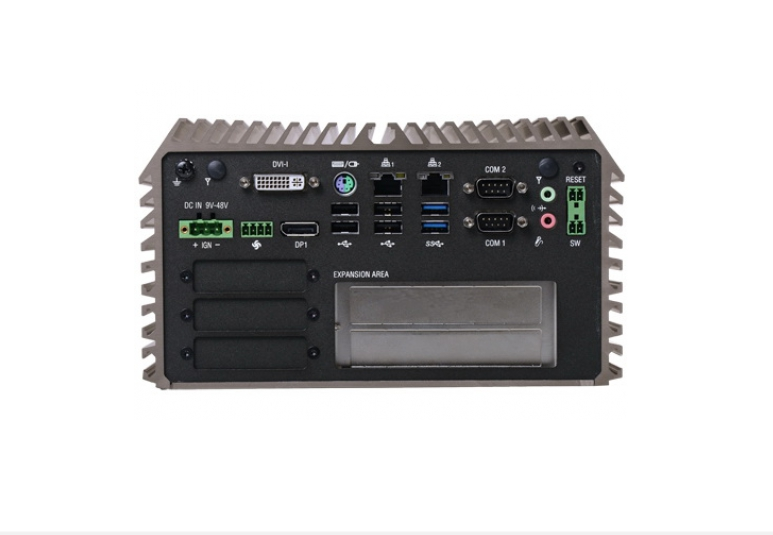

DS-1002L
- Support 4th Gen. Intel Core i3 / i5 / i7 Desktop Processor (LGA1150)
- Support Intel Q87 Chipset
- 2x DDR3 / DDR3L SO-DIMM Max. up to 16GB
- Three Independent Display from 1x DVI-I and 2x DisplayPort
- 6x Intel GbE Port, Support Wake-on-LAN and PXE
- 4x USB 3.0 and 4x USB 2.0
- 6x RS232/422/485 Port with 5V/12V Power
- 4x Isolated DI, 4x Isolated DO
- 2x 2.5” SATA SSD/HDD Bay
- 2x mSATA (1x Shared by Mini-PCIe Socket)
- 1x CFast Card and 1x SIM Card Socket
- 9~48VDC Power Input, Support AT/ATX Mode
- 2x PCI or 1x PCIe x1 and 1x PCIe x16 or 1x PCI and
- 1x PCIe x16 Expansion
- Power Ignition
- Compliant with EN50155 for Rail Transportation Applications
产品详情
| Model Name | DS-1002L-PE | DS-1002L-EE | DS-1002L-PP | |
| Processor System | CPU |
Intel 4th Generation: G1820TE / i3-4330TE / i5-4570TE / i7-4770TE Supported |
||
| Frequency | 2.2 GHz / 2.4 GHz / 2.7 GHz / 2.3 GHz | |||
| Core Number | 2 / 2 / 2 / 4 | |||
| BIOS | AMI 128Mbit SPI | |||
| Chipset | Intel Q87 | |||
| Memory | Technology |
DDR3 / DDR3L 1333MHz / 1600MHz (un-buffered and non-ECC) |
||
| Max. Capacity | 16 GB | |||
| Socket | 2x 204-Pin SO-DIMM | |||
| Display | VGA | Yes (w/ Optional Split Cable) | ||
| DDI (HDMI/DVI/DisplayPort) |
1x DVI 2x DisplayPort |
|||
| Multiple Display | Triple | |||
| Expansion | PCI | 1 | - | 2 |
| PCIe |
1 (PCIe x16) |
2 (PCIe x16, PCIe x1) |
- | |
| Mini PCIe | 2x Full-size Mini PCIe | 2x Full-size Mini PCIe | 2x Full-size Mini PCIe | |
| Ethernet | Controller |
GbE1: Intel 82583V, GbE2: Intel i217LM, GbE3: Intel 82583V, GbE4: Intel 82583V, GbE5: Intel 82583V, GbE6: Intel 82583V, Support Wake-on-LAN and PXE |
||
| PoE | - | |||
| Speed | 10/100/1000 Mbps | |||
| Audio | Codec | Realtek ALC888S | ||
| Connector |
1x Mic-in, 1x Speak-out |
|||
| WatchDog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|||
| Storage | SSD / HDD | 2x 2.5" SATA SSD/HDD Bay | ||
| mSATA |
2x mSATA (1x Shared by Mini-PCIe Socket) |
|||
| CompactFlash/CFast | 1x CFast | |||
| SIM Socket | 1 | |||
| I/O Ports | USB 3.0 | 4 | ||
| USB 2.0 | 4 | |||
| DIO | 4 in/4 out | |||
| COM Port | 6x RS-232/422/485 | |||
| PS/2 | 1x KB/MS | |||
| Antenna Hole | 2 | |||
| Power Switch | 1 | |||
| AT/ATX Switch | 1 | |||
| External Fan Connector | Yes | |||
| Remote Power On/Off and Remote Power Reset | Yes | |||
| Universal I/O Bracket | 3 | |||
| Power | Power Type | AT, ATX | ||
| Power Supply Voltage | 9~48VDC | |||
| Connector | 3-pin Terminal Block | |||
| Power Adaptor | Optional AC/DC 24V/5A, 120W | |||
| Environment | Operating Temperature |
Ambient with air flow: -10°C to 60°C (with Industrial Grade Peripherals) |
||
| Storage Temperature | -20°C to 80°C | |||
| Relative Humidity | 10%~95% (non-condensing) | |||
| Physical |
Dimension (WxDxH, mm) |
227 x 261 x 126 mm | ||
| Weight | 5.70 kg | |||
| Construction | Extruded Aluminum with Heavy Duty Metal | |||
| Mounting | Wall | |||
| Operating System | Microsoft? Windows? |
Windows 8 Windows Embedded 8 Standard Windows 7 Windows Embedded Standard 7 |
||
| Certification | Safety Certifications |
CE EN 50155 FCC Class A EN 50121-3-2 |
||
