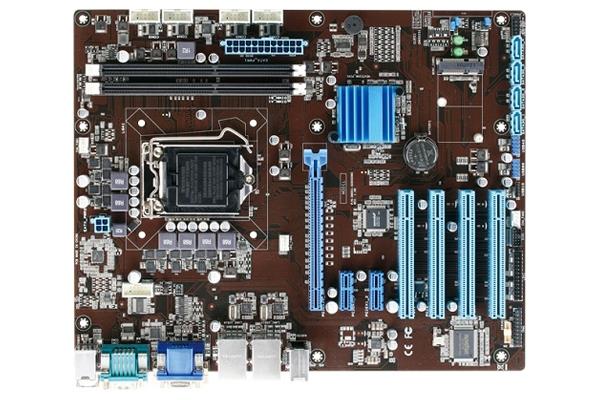

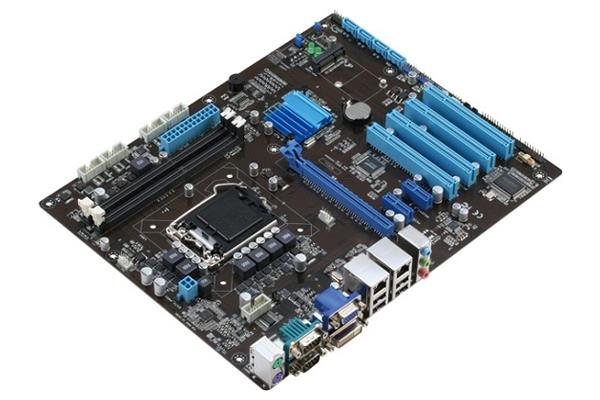

IMBA-H61A

  • 第2代/第3代英特尔?酷睿 Socket 1155 ? 处理器
  • 英特尔? H61 Express芯片组
  • DDR3 1066/1333 MHz DIMM x 2,最大支持16GB
  • 独立双显：VGA, DVI
  • Realtek RTL8111F x 2,千兆以太网x 2
  • 多种扩展槽：PCI-E〔x16〕x 1, PCI-E〔x1〕x 2, PCI x 4, Mini Card x 1

    • 产品详情

    SYSTEM
    PROCESSOR Intel? 3rd/ 2nd Generation Core? i7/i5/i3/Pentium? / Celeron? 22nm LGA 1155 Processors
    CHIPSET Intel? H61 Express Chipset
    MEMORY 240-pin DIMM x 2, max. 16GB, DDR3 1333/1066/800 MHz, non-ECC, un-
    buffered memory, Dual channel memory architecture
    GRAPHICS —
    I/O CHIPSET NCT6776F
    ETHERNET Realtek RTL8111F Giga LAN x 2
    AUDIO Realtek? ALC887 (Colay with ALC886)
    TPM 20-1 PIN header for TPM1.2/FW3.19
    EXPANSION SLOT PCIe 2.0[x16] Slot x 1, PCIe 2.0 [x1] slot x 2, PCI x 4, Full/Half Size Mini-card x 1
    BIOS 64Mbit Flash ROM, AMI BIOS
    H/W MONITOR Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/VBAT/12V, Fan Monitor on CPU/Chassis
    WATCHDOG TIMER 1~255 steps by software program
    SMART FAN CONTROL CPU Fan/ Chassis Fan
    WAKE ON LAN/ PXE Yes (WOL/PXE)
    POWER STATE S3,S4,S5
    GRAPHICS
    GRAPHICS CHIPSET Intel? HD Graphics
    GRAPHICS MULTI DISPLAY VGA+DVI
    VGA Up to 1920 x 1200 @60 Hz
    DVI Up to 1920 x 1200 @60 Hz
    HDMI —
    DISPLAYPORT —
    LVDS —
    BACKLIGHT CONTROL —
    ENVIRONMENTAL & POWER & ME
    BATTERY Lithium battery
    POWER REQUIREMENT 24-pin ATX connector x 1, 4-pin ATX 12V Power connector x 1
    OPERATING TEMPERATURE 32°F ~ 140°F (0°C ~ 60°C)
    STORAGE TEMPERATURE -40°F ~185°F (-40°C ~85°C)
    OPERATING HUMIDITY 0%~90%RH, non-condensing
    CERTIFICATION CE & FCC Class A
    FORM FACTOR ATX Form Factor, 12" x 9.6" (305 mm x 244 mm)
    WEIGHT 1.45 lb (0.66Kg)
    MTBF (HOURS) 136599

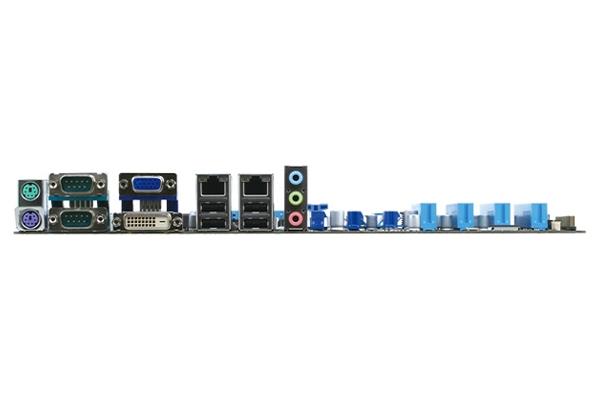

    REAR PANEL I/O PORTS
    USB USB 2.0 ports x 4
    DISPLAY I/O VGA x 1, DVI-D x 1
    AUDIO I/O Audio Jack x 3: Line-in, Mic-in, Line-out
    LAN I/O LAN (RJ-45) port x 2
    SERIAL PORT DB-9 connector COM x 2 (COM2 support RS-232/422/485)
    PS/2 PORT PS/2 Keyboard Connector x 1, PS/2 Mouse Connector x 1
    INTERNAL I/O CONNECTORS
    STORAGE SATA2 (3.0Gb/s) connector x 4
    USB USB 2.0 2x5-pin connector x 2 support additional USB port x 4, USB 2.0 1 x 5-pin connector x 1 support USB port x 1
    DISPLAY I/O —
    SERIAL PORT RS-232 header x 4
    PARALLEL PORT LPT connector x 1, Support SPP/EPP/ECP Mode
    DIO 8-bit Digital I/O interface x 1 (In/Out programmable)
    FAN CPU Fan connector(s) (4-pin) x 1, Chassis Fan connector(s) (4-pin) x 1
    POWER —
    OTHERS Front panel header x 1, Clear CMOS jumper x 1, TPM header x 1, BIOS flash header (2[x4]P p=1.27mm) x 1
    OS
    OS SUPPORT Windows? XP 32-bit, Windows? 7 32/64-bit, Windows? 8 32/64-bit
