3.5寸工控主板
←
→

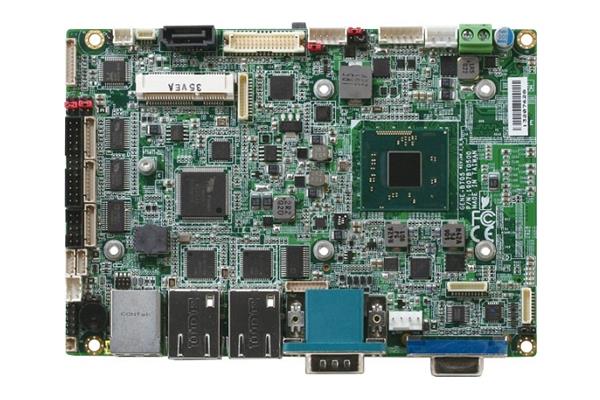

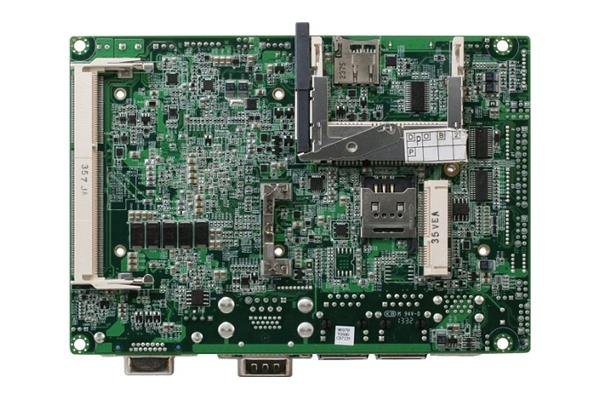

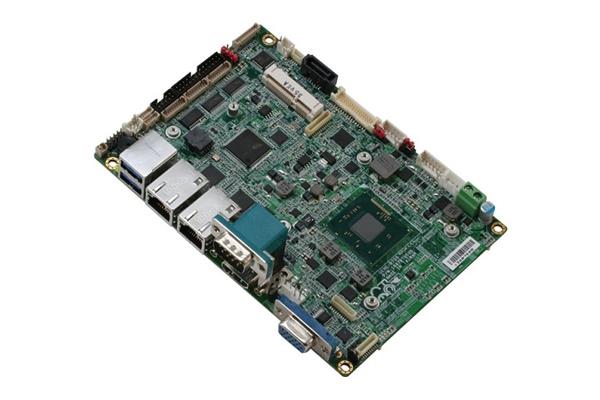

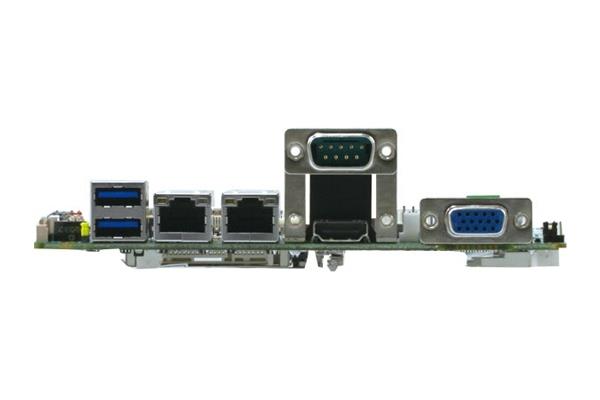

GENE-BT05

  • 板载英特尔?凌动? 和赛扬? 系统芯片处理器
  • DDR3L 1066/1333MHz SODIMM x 1, 最大支持8 GB
  • 千兆以太网x 2, RJ-45 x 2
  • CRT, 18/24位，双通道LVDS LCD, HDMI
  • 双声道HD音频
  • SATA 3.0Gb/s x 1, CFast? x 1
  • USB3.0 x 1, USB2.0 x 3, COM x 4, 8位数字I/O
  • Mini Card x 2 (全尺寸x 1, 半尺寸x 1)
  • +12V供电
  • 板载4/5/8线电阻式触摸屏控制器(可选)
  • 支持研扬Hi-Safe套件与功能
  • mSATA x 1 (可选, 可替代Mini Card接口)
  • 板载可信任安全模块(可选)

    • 产品详情

    SYSTEM
    FORM FACTOR 3.5'' SubCompact Board
    CPU Intel? N2930/N2807/J1900/E3845/E3825
    CPU FREQUENCY Up to 2.0GHz
    CHIPSET Intel? N2930/N2807/J1900/E3845/E3825
    MEMORY TYPE DDR3L 1066/1333, SODIMM x 1
    MAX. MEMORY CAPACITY Up to 8G
    BIOS UEFI
    WAKE ON LAN Yes
    WATCHDOG TIMER 255 Level
    POWER REQUIREMENT +12V
    POWER SUPPLY TYPE AT/ATX
    POWER CONSUMPTION (TYPICAL) Intel? N2930, DDR3L 1600MHz 8G, 0.65A@+12V
    DIMENSION (L X W) 5.75" x 4" (146mm x 101.6mm)
    OPERATING TEMPERATURE 32°F ~ 140°F (0°C ~ 60°C),
    -40°F ~ 185°F (-40°C ~ 85°C) WiTAS 2 (E3825, E3845)
    STORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C)
    OPERATING HUMIDITY 0% ~ 90% relative humidity, non-condensing
    MTBF (HOURS) 111000
    CERTIFICATION CE/FCC
    DISPLAY
    VGA/LCD CONTROLLER Intel? N2930/N2807/J1900/E3845/E3825
    VIDEO OUTPUT CRT+LVDS, HDMI+LVDS , CRT+HDMI
    BACKLIGHT INVERTER SUPPLY Up to 24-bit dual-channel LVDS x 1
    I/O
    ETHERNET Intel? I211 (or 210), 10/100/1000Base-TX, RJ-45 x 2
    AUDIO High definition audio interface
    USB PORT USB2.0 x 3 , USB 3.0 x 1
    SERIAL PORT RS-232 x 2 , RS-232/422/485 x 2
    PARALLEL PORT SPP/EPP/ECP x 1
    HDD INTERFACE SATA 2.0 x 1
    FDD INTERFACE —
    SSD CFast? (alternative with mSATA by BOM and also occupy one Mini-Card location)
    EXPANSION SLOT Mini-Card x 2(Full-size x 1, Half-size x 1)
    DIO 8 bit
    SIM x 1
    TPM x 1
    TOUCH x 1
