SYSTEM
|
|

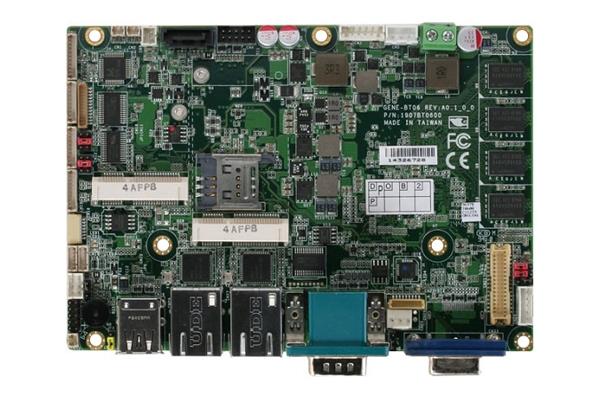

FORM FACTOR
|
3.5'' SubCompact Board
|
|
CPU
|
Intel? Atom? E3845/E3825
|
|
CPU FREQUENCY
|
Up to 2.0GHz
|
|
CHIPSET
|
Intel? Atom? series Processor SoC
|
|
MEMORY TYPE
|
On Board DDR3L 1066/1333
|
|
MAX. MEMORY CAPACITY
|
Up to 4GB
|
|
BIOS
|
UEFI
|
|
WAKE ON LAN
|
Yes
|
|
WATCHDOG TIMER
|
255 Level
|
|
POWER REQUIREMENT
|
Wide DC support 9~24V
|
|
POWER SUPPLY TYPE
|
AT/ATX
|
|
POWER CONSUMPTION (TYPICAL)
|
Intel? E3845, Onboard DDR3L 1600MHz 4G, 0.64A@+12V
|
|
DIMENSION (L X W)
|
5.75" x 4" (146mm x 101.6mm)
|
|
OPERATING TEMPERATURE
|
32°F ~ 140°F (0°C ~ 60°C) or WiTAS 2 (TBD)
|
|
STORAGE TEMPERATURE
|
-40°F ~ 176°F (-40°C ~ 80°C)
|
|
OPERATING HUMIDITY
|
0% ~ 90% relative humidity, non-condensing
|
|
MTBF (HOURS)
|
110000
|
|
CERTIFICATION
|
CE/FCC
|
|
DISPLAY
|
|
VGA/LCD CONTROLLER
|
Intel? Atom? series Processor SoC
|
|
VIDEO OUTPUT
|
CRT+LVDS, HDMI+LVDS , CRT+HDMI
|
|
BACKLIGHT INVERTER SUPPLY
|
18/24-bit dual-channel LVDS LCD
|
|

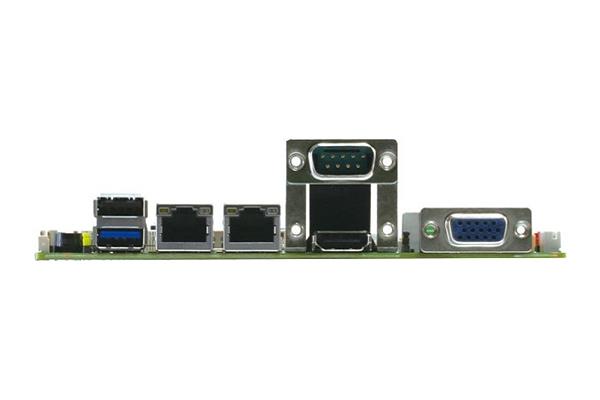

I/O
|
|
ETHERNET
|
Intel? I211 (or 210), 10/100/1000Base-TX, RJ-45 x 2
|
|
AUDIO
|
High definition audio interface
|
|
USB PORT
|
USB2.0 x 3 , USB 3.0 x 1
|
|
SERIAL PORT
|
RS-232 x 2 , RS-232/422/485 x 2
|
|
PARALLEL PORT
|
SPP/EPP/ECP x 1
|
|
HDD INTERFACE
|
—
|
|
FDD INTERFACE
|
—
|
|
SSD
|
—
|
|
EXPANSION SLOT
|
—
|
|
DIO
|
—
|
|
SIM
|
x 1
|
|
TPM
|
—
|
|
TOUCH
|
—
|
